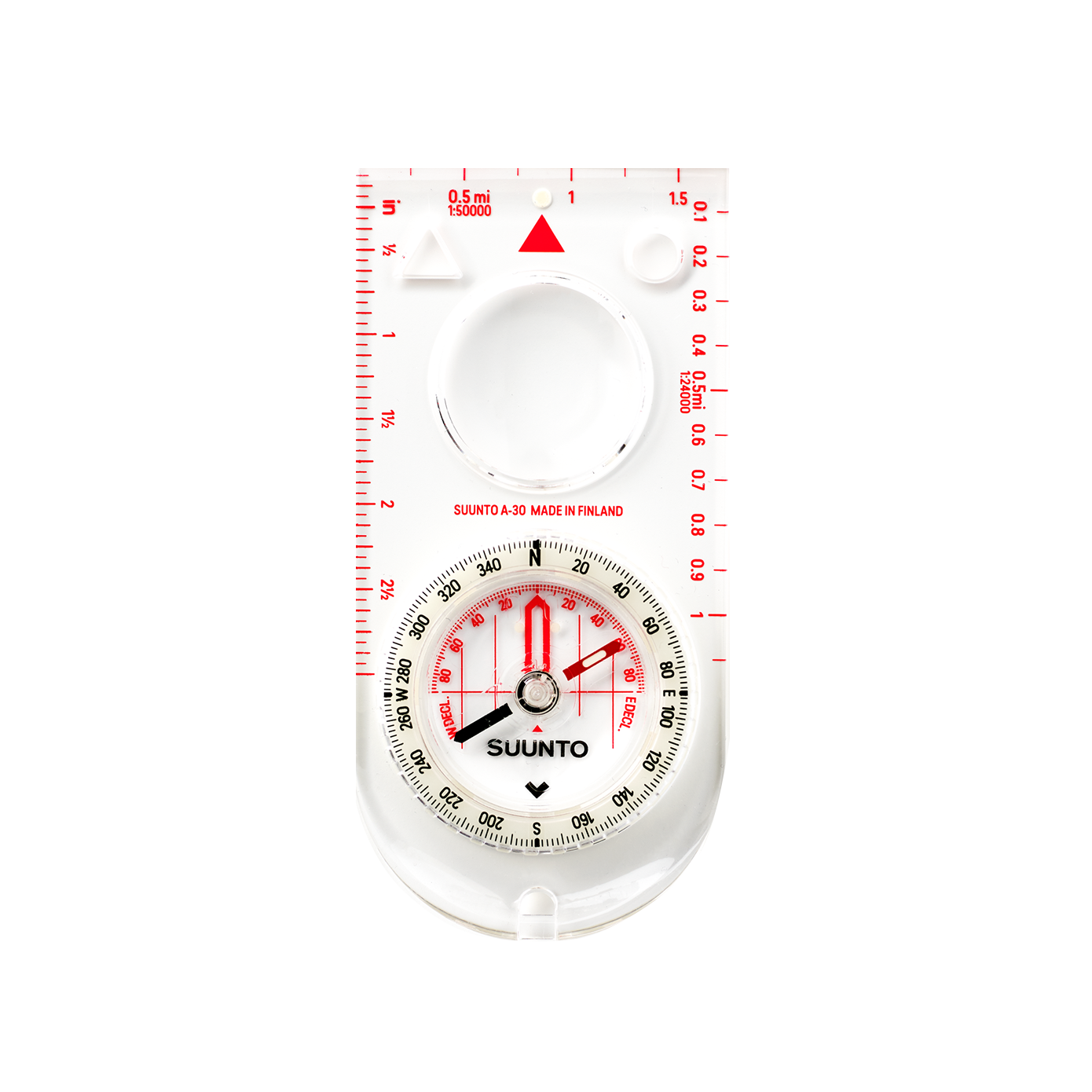

Suunto A-30
NH USGS Compass
A compact, accurate compass for hiking and orienteering, also in poor visibility.
- High grade steel needle with jewel bearing
- Balanced for northern hemisphere, imperial scale

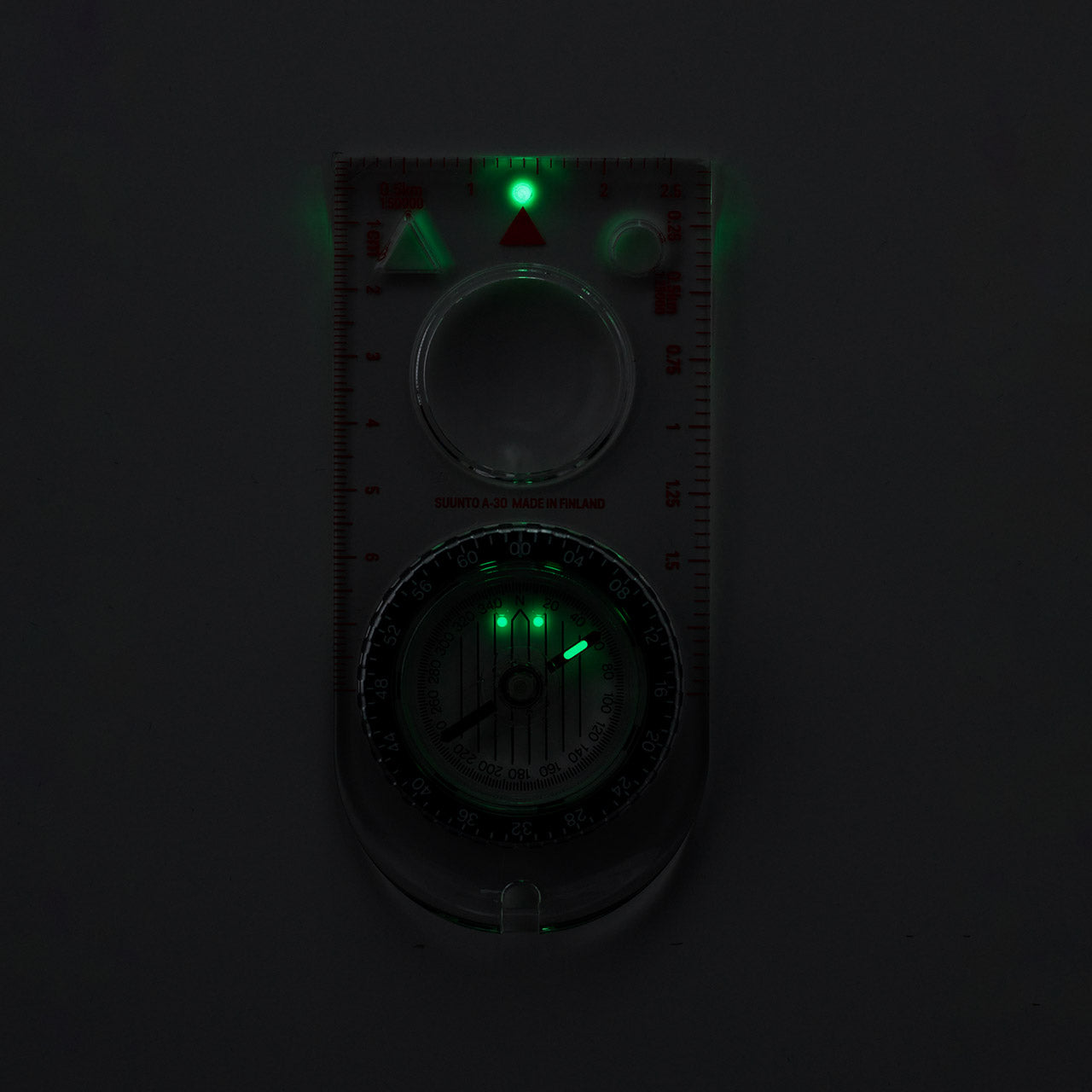

- Luminescent markings for working in low light
- Fixed declination correction scale
- Baseplate with magnifying lens
- Detachable snap-lock lanyard
Choose your Color
BASEPLATE COMPASS WITH MAGNIFYING LENS FOR BACKPACKERS
Suunto A-30 is a reliable baseplate compass for navigating and surviving in extreme conditions. Depending on the variant, A-30 comes with Metric UTM scales and inch ruler or USGS UTM scales.
The Earth’s magnetic field does not flow evenly between the magnetic poles along the surface of the planet. To compensate for the natural tilt in the magnetic field, Suunto compasses use one of two balancing systems and you should choose the variant best serving your needs.
One is a two-zone system with needles balanced for either the northern or southern hemisphere. The second is a unique globally balanced system. A single needle is balanced to work anywhere in the world. This is achieved by a breakthrough construction allowing the needle and magnet to tilt independently.
Specifications
-
Measurements57 x 114 x 10 mm / 2.24 x 4.49 x 0.39 "
-
Weight32 g / 1.13 oz
-
Bezel material:Plastic
-

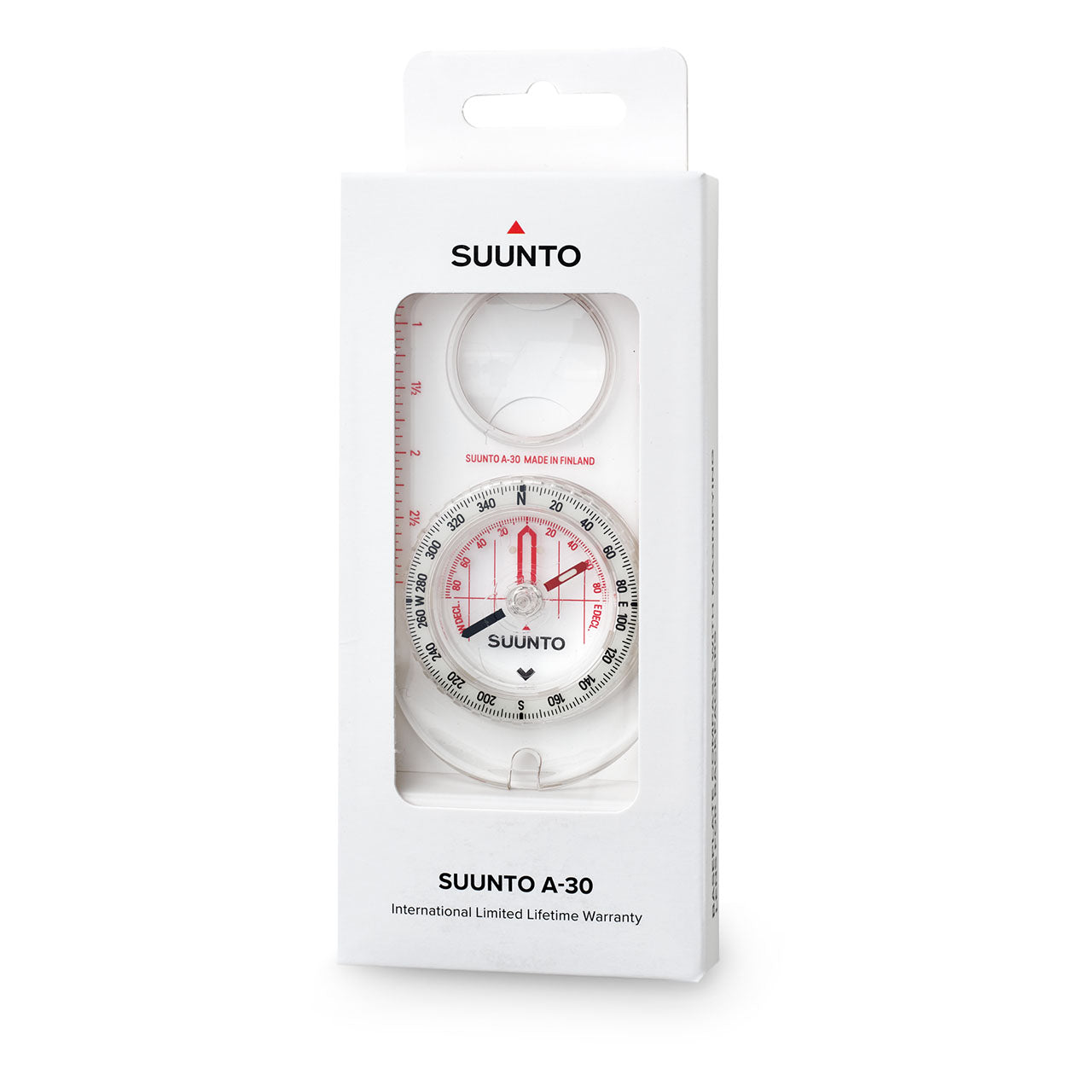

What's in the box?Suunto A-30 NH USGS Compass, lanyard, Quickrelease, Quick Guide
-
Country of manufactureFI
- High grade steel needle with jewel bearing
- Balanced for northern hemisphere
- Fixed declination correction scale
- Liquid filled capsule for stable operation
- Luminescent markings for working in low light
- Imperial scales
- Baseplate with magnifying lens
- Control marking holes
- Detachable snap-lock lanyard. Easy to detach for working with the map
- Suunto limited lifetime warranty
- Made in Finland
- NSN: 6605-01-549-4770
Technical specifications
GENERAL
-
Bezel material:Plastic
-
Metric scalesinch, 1:24 000 mi, 1:50 000 mi
-
Balanced for northern hemisphere✔
-
Declination correctionfixed scale
-
Weight32 g / 1.13 oz
-
Water resistanceinsensitive to water pressure
-
Battery typeno battery required
-
Luminous markingsbezel, orienting markings and direction of travel
-
Lanyard quick release✔
-
Attachmentlanyard
COMPASS
-
Direction scaledegrees
-
Needlehigh grade steel
-
Liquid filled and jewel bearing✔
-
Bearing lock with orienting indicator✔
-
Compass accuracy2.5°
-
Compass resolution2°
PHYSICAL SPECIFICATIONS
-
Operating temperature-30° C to +60° C / -22° F to +140° F
-
Storage temperature-30° C to +60° C / -22° F to +140° F
OUTDOOR FUNCTIONS
GPS TRACKING & NAVIGATION
-
Magnifying lens✔
