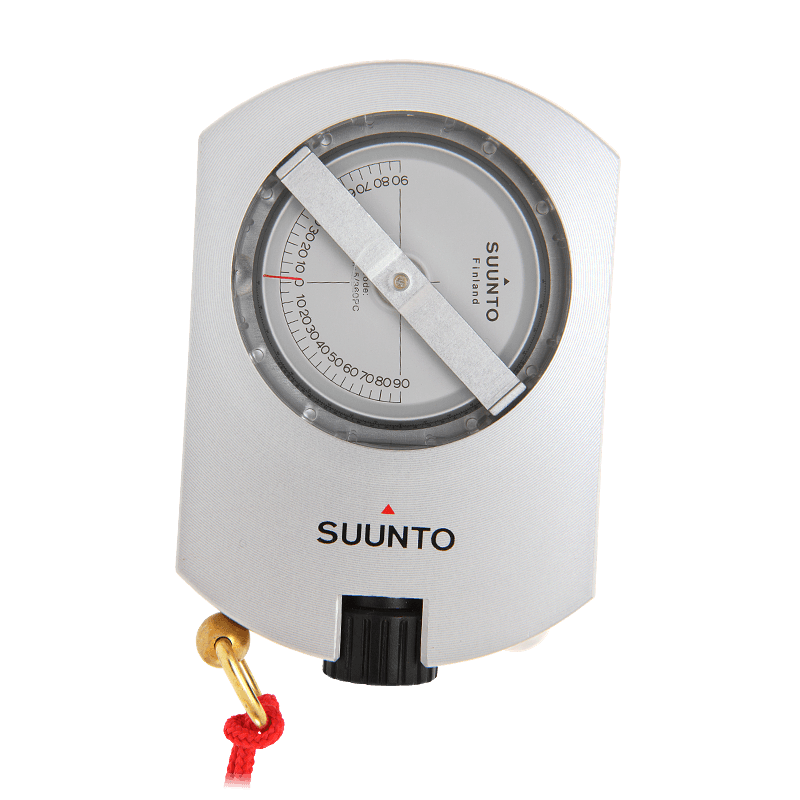

SUUNTO PM-5 /360 PC CLINOMETER
$195
Suunto PM-5
/360 PC Clinometer
Suunto PM-5 provides a selection of height meters, clinometers and combined height- and clinometers.
- Acrylic glass and anodized light-alloy housing
- Accurate measurement of heights and slopes
- Optical reading of card for higher accuracy
- Clinometer combined
- Lanyard attachment, and nylon pouch with belt-loop
${ type }
Choose your Color
Quantity
THE INCLINATION TOOL FOR PROFESSIONALS
The Suunto PM-5 hand-held clinometers are used all over the world by foresters, surveyors, engineers, cartographers, geologists, miners and architects and many others to measure heights, vertical angles and slopes quickly, reliably and easily.
PRODUCT HIGHLIGHTS
- Scales for slope in degrees and %
- Accurate measurement of heights and slopes
- Optical reading of card for higher accuracy
Specifications
-
Measurements52 x 77 x 15 mm / 2.05 x 3.03 x 0.59 "
-
Weight94 g / 3.32 oz
-
Glass material:Acrylic
-
What's in the box?Suunto PM-5/360 PC Clinometer, lanyard, nylon pouch, Quick guide
-
Country of manufactureFI
- Accuracy 1/4°
- Graduation interval 0.5°
- Scale: slope ±90°, slope %
- Adjustable diopter
- Dual saphire bearing
- Liquid filled capsule for stable operation
- Anodized light-alloy housing
- Nylon pouch with belt-loop
- Lanyard
- 2-year warranty
- Made in Finland
- NSN: 6675-17-054-1961, 6675-21-905-6892, 6675-58-001-5956
Technical specifications
GENERAL
-
Glass material:Acrylic
-
Weight94 g / 3.32 oz
-
Battery typeno battery required
-
Tripod mount✔
-
Conversion tablecosine 0-45° cotangent 0-45°
-
Carrying pouch✔
-
Attachmentlanyard
COMPASS
-
Adjustable optics✔
PHYSICAL SPECIFICATIONS
-
Operating temperature-30° C to +60° C / -22° F to +140° F
-
Storage temperature-30° C to +60° C / -22° F to +140° F
OUTDOOR FUNCTIONS
GPS TRACKING & NAVIGATION
-
Sightingoptics
CLINOMETER
-
Clinometer✔
-
Adjustable optics✔
-
Jewel bearing✔
-
Liquid filled✔
-
Clinometer scales0 ± 90°, 0 ± 150%
-
Inlcination accuracy1/4°
-
Inclination resolution1° and 1%
Customer Reviews
Based on 21 reviews
95%
(20)
5%
(1)
0%
(0)
0%
(0)
0%
(0)
M
I am a professional trail builder and have used your Clinometer for approx 30 years. My first one wore out! Too much abuse in a pack, etc. Just replaced the same model with a new one. Works great! It is nice to be able to depend on such a quality tool for my work. Thanks!
M
This clinometer is high quality and easy to use. I use it for measuring the height of cell phone towers, and once you get the hang of it, it's easy to do.If you're unfamiliar this the device, it simply measures the angle at which you are looking. So if you know how far away you are from something, and the angle you look at to see the top of your target, you can get the height.I've "calibrated" it to known heights of structures, and I usually get within +/- 5 feet. There are a lot of factors at play when doing this: sun, distance from target (as affected by terrain - if hilly, the distance you would measure walking is not the same as a straight line distance), skill of use (it take some practice to get your eyes use to looking through this).
G
Hard to be a fanboy of inclinometers. Does what it's supposed to. What more?
A
This is a solid, well designed, and nicely manufactured product. And at a fair price. What more can one ask for?I've tried this to estimate the (known) height of several objects and structures. The calculations are very straight forward and easy to perform. The calculated results were closer than I would have expected. I think I'm going to love this!
L
Palm sized Clinometer for measuring angle or elevation of slopes. Easy to read & lightweight. Comes with a lanyard so you can wear it around your neck when in the field & it has a pouch & belt loop to keep it safe from scratches & secured on your body when navigating through woodsy areas or when working near machinery. Great product!
