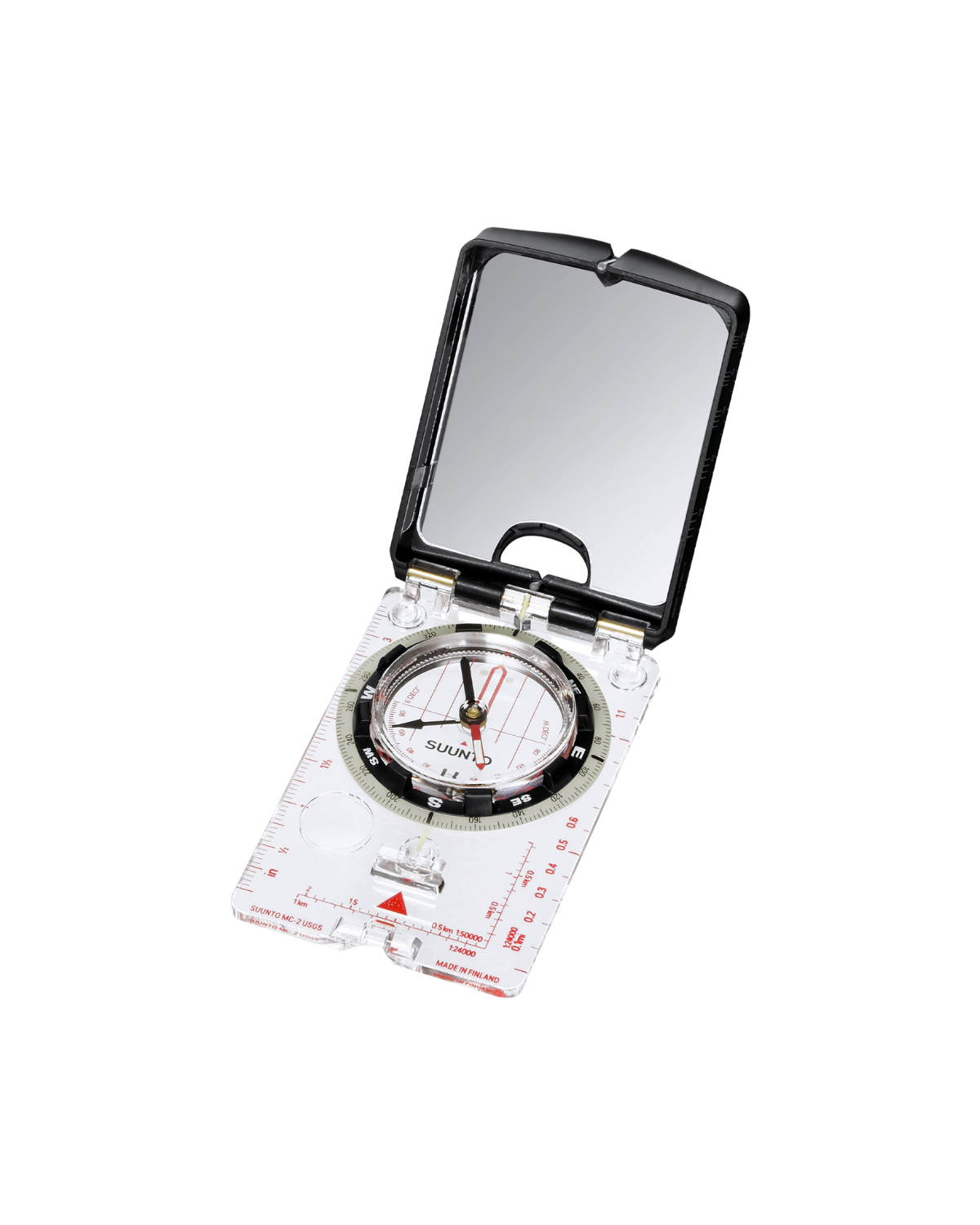

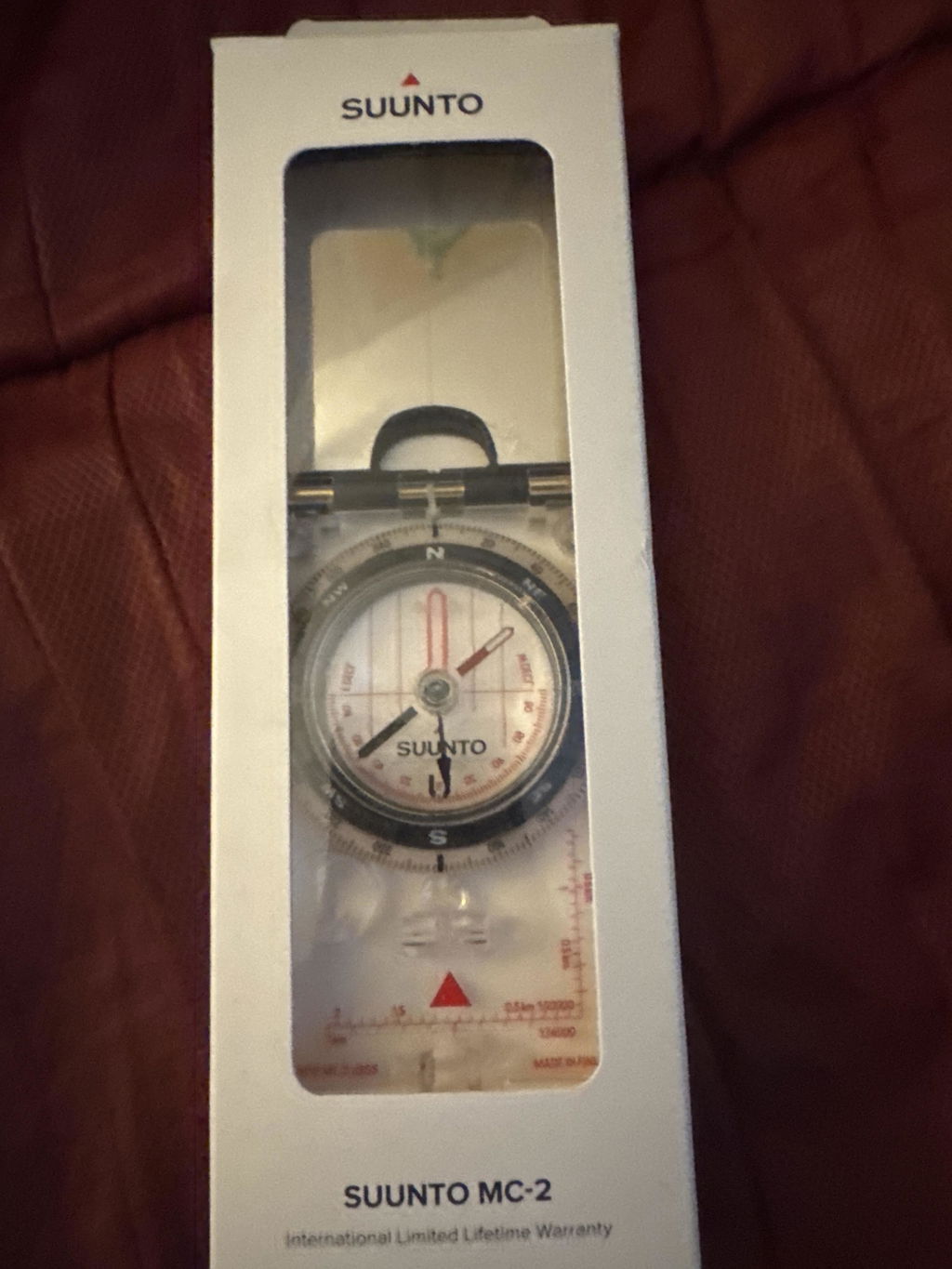

Suunto MC-2
NH USGS Mirror Compass
A professional mirror compass with top-of-the-line features for direction and slope measurements for mountain adventures.
- High grade steel needle with jewel bearing

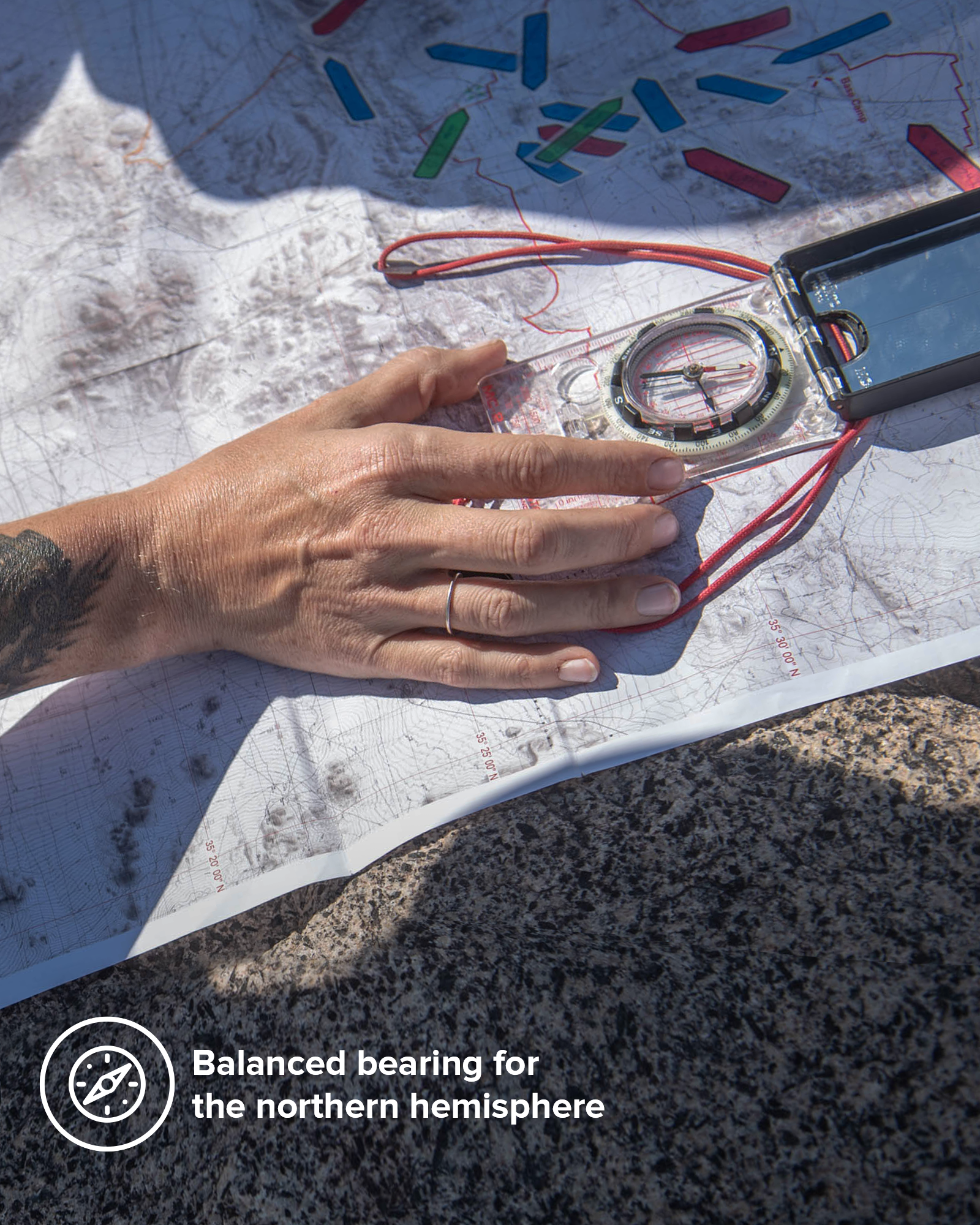

- Balanced for northern hemisphere, USGS UTM scales
- Mirror for sighting bearings and signaling, with magnifying lens

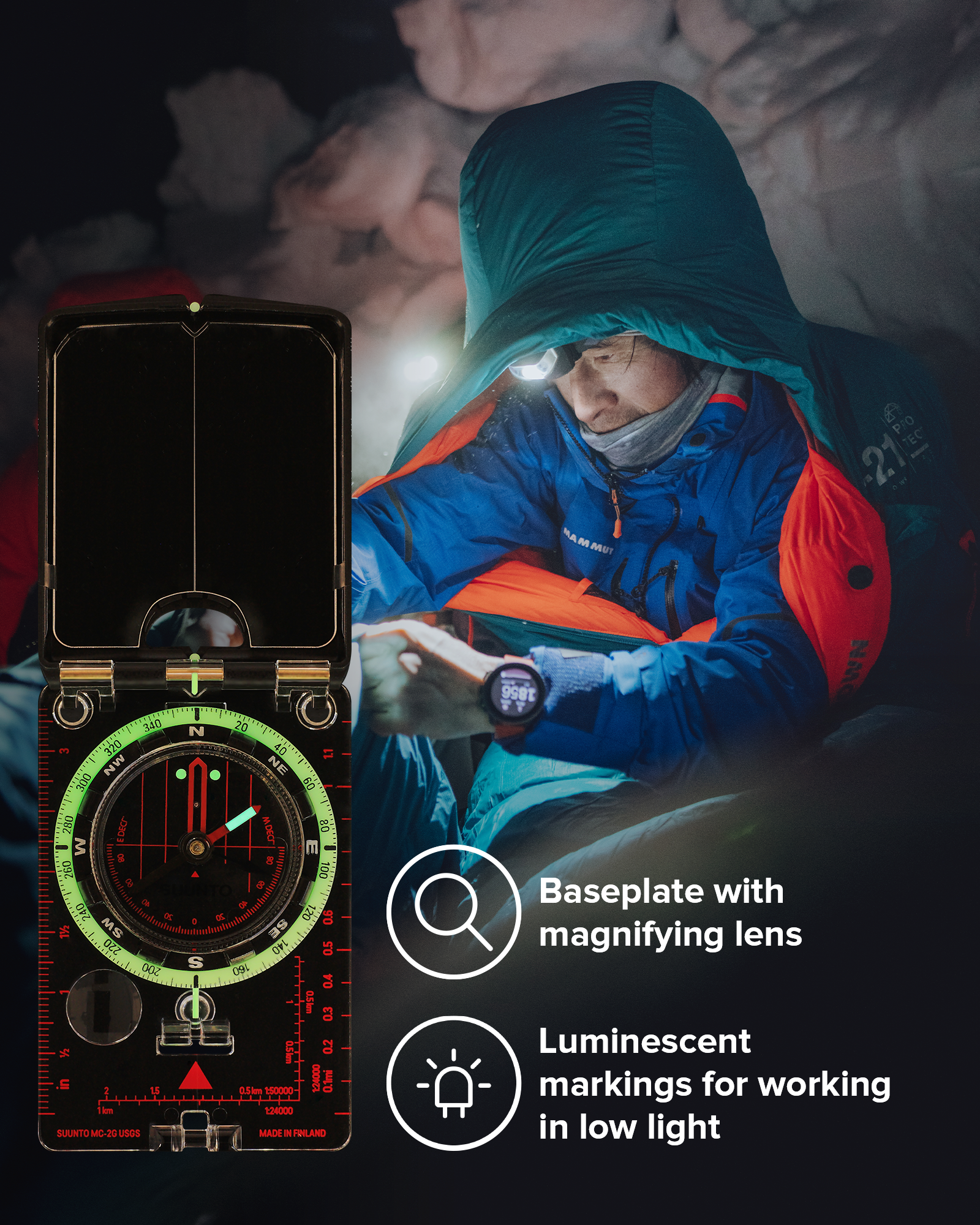

- Luminescent markings for working in low light
- Adjustable declination correction
- Clinometer combined
- Detachable snap-lock lanyard with wristlock
Choose Your Color
${ type }
Choose Your Color
Quantity
Sighting compass for mountain adventures
When venturing out into new territory, SUUNTO MC-2 sighting compasses offer precision navigation with a variety of carefully engineered and dependable features for challenging conditions. Depending on the variant, MC-2 comes with Metric UTM scales and inch ruler or USGS UTM scales.
The Earth’s magnetic field does not flow evenly between the magnetic poles along the surface of the planet. To compensate for the natural tilt in the magnetic field, Suunto compasses use one of two balancing systems and you should choose the variant best serving your needs.
One is a two-zone system with needles balanced for either the northern or southern hemisphere. The second is a global compass with unique balanced system. A single needle is balanced to work anywhere in the world. This is achieved by a breakthrough construction allowing the needle and magnet to tilt independently.
Specifications
-
Measurements65 x 101 x 18 mm / 2.56 x 3.98 x 0.71 "
-
Weight74 g / 2.61 oz
-
Bezel material:Plastic
-
What's in the box?Suunto MC-2 NH USGS Mirror Compass, lanyard with wristlock and declination correction tool, Quickrelease, Quick Guide
-
Country of manufactureFI

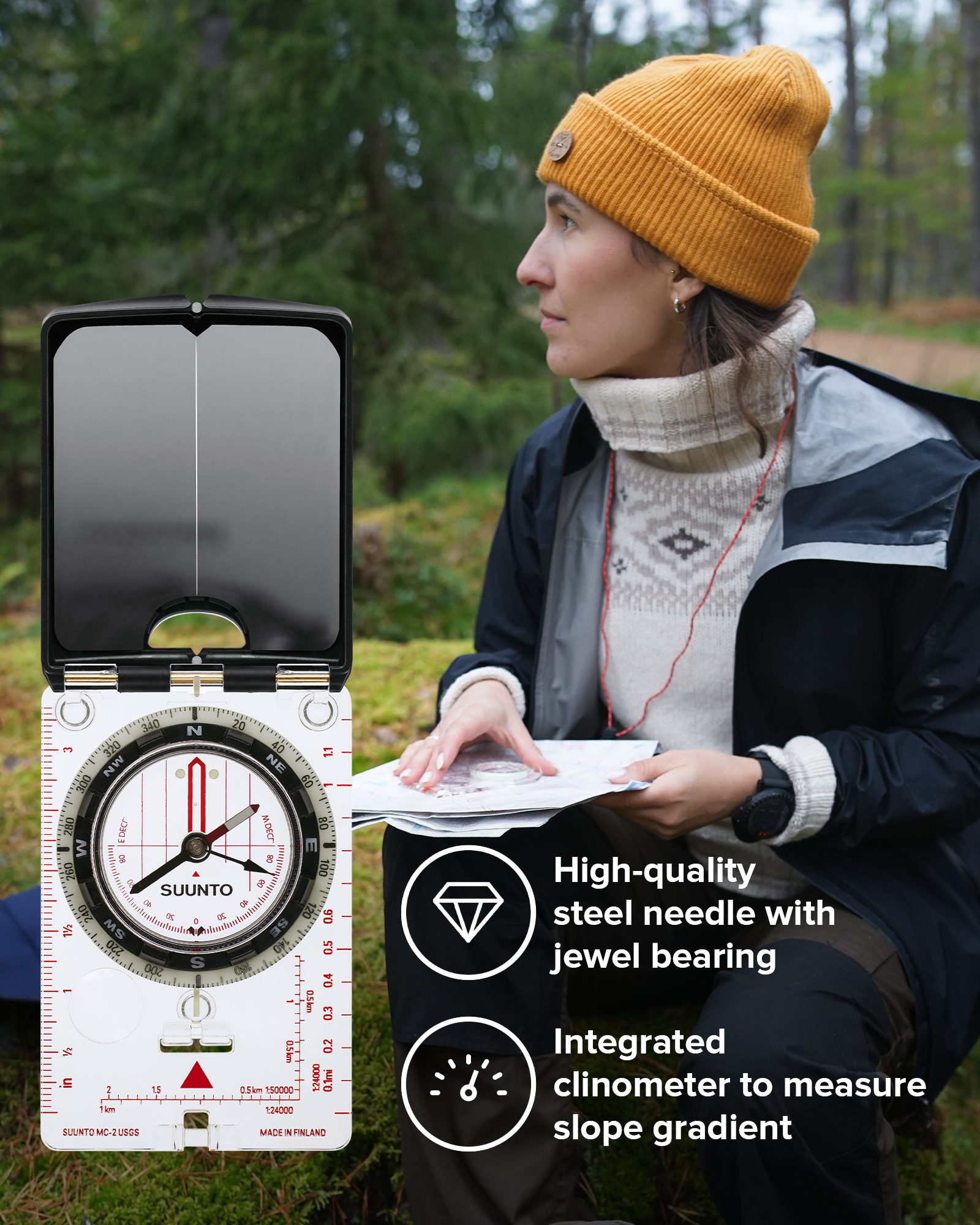

- High grade steel needle with jewel bearing
- Balanced for northern hemisphere

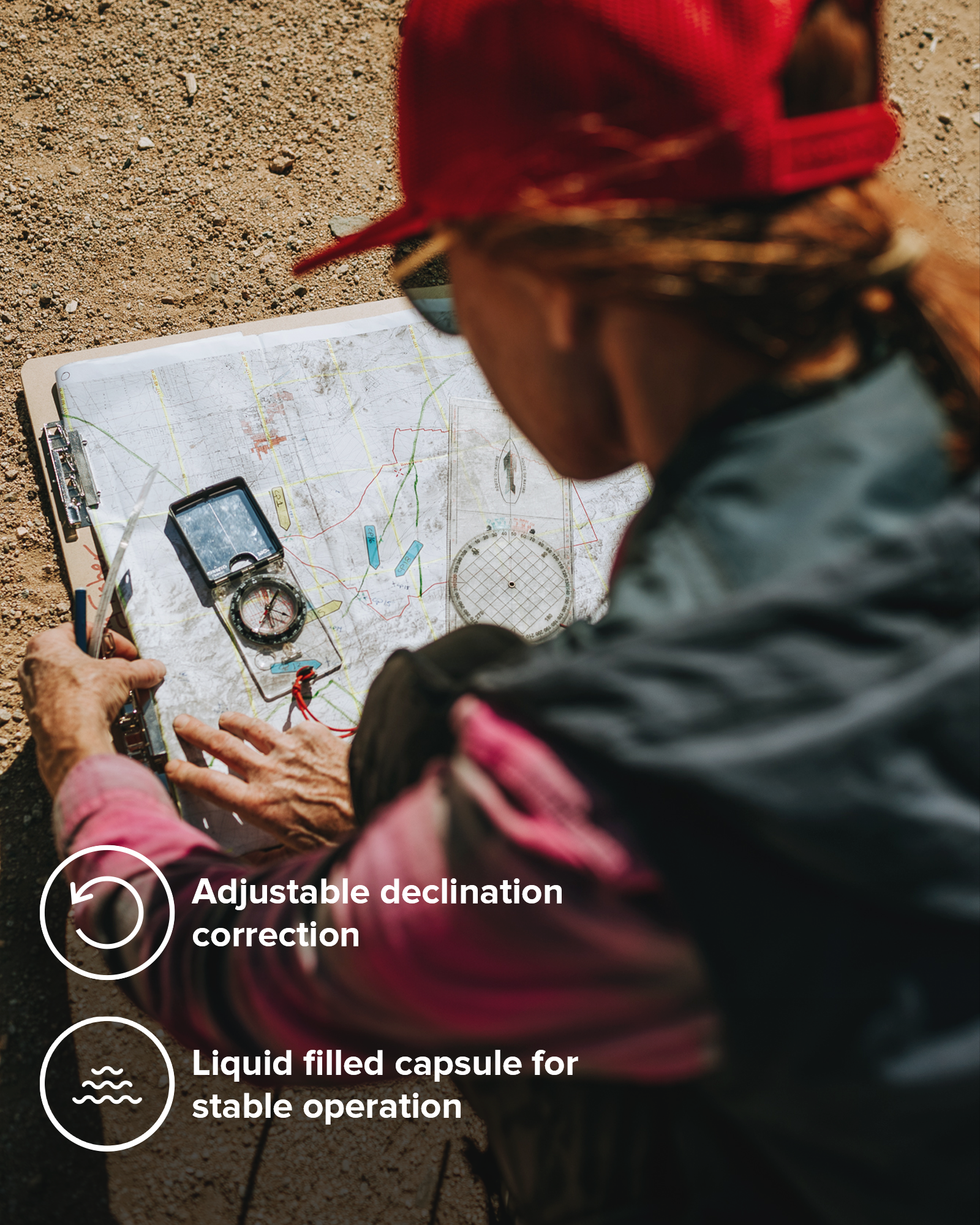

- Adjustable declination correction
- Liquid filled capsule for stable operation

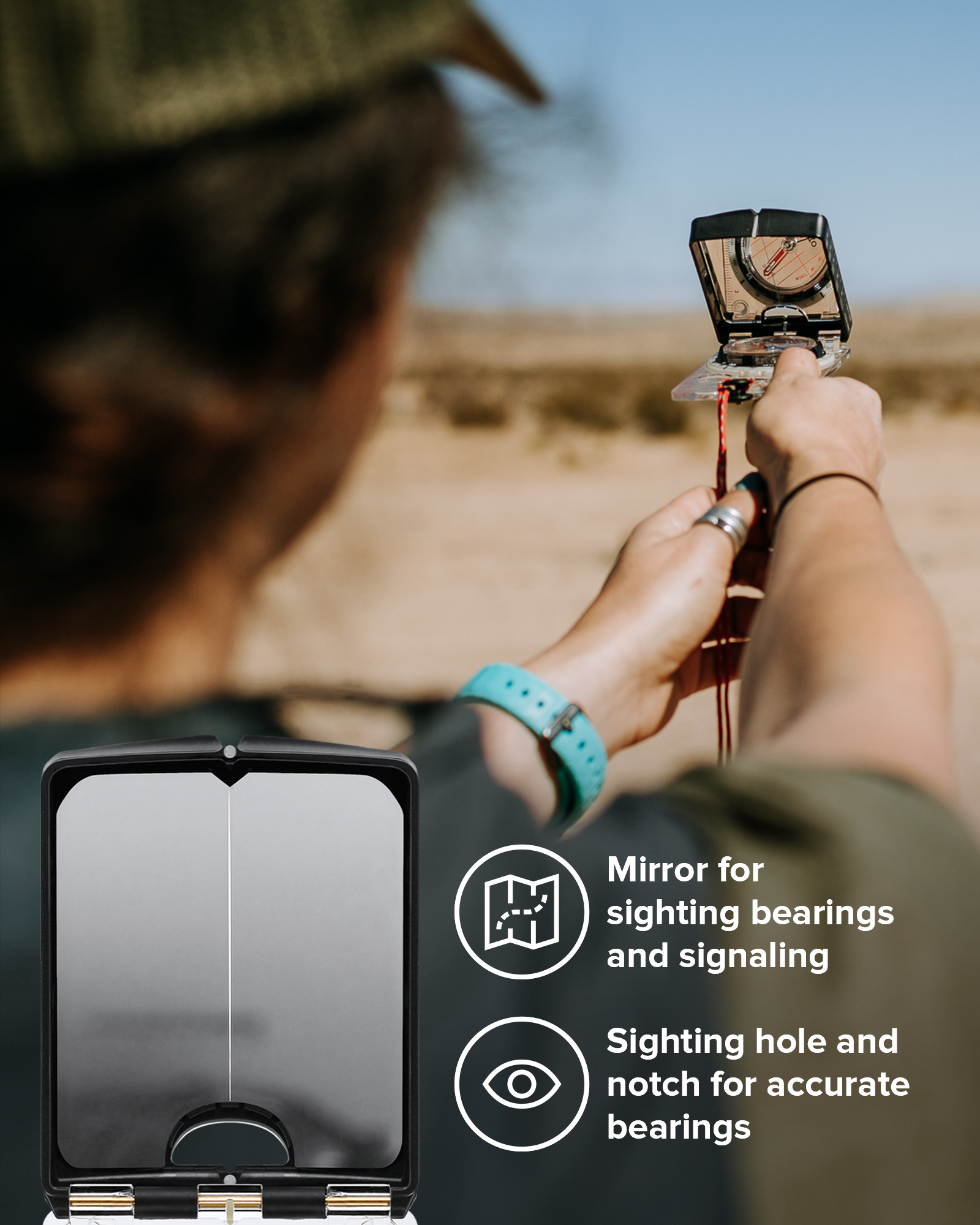

- Mirror for sighting bearings and signaling
- Sighting hole and notch for accurate bearings
- Clinometer
- Luminescent markings for working in low light

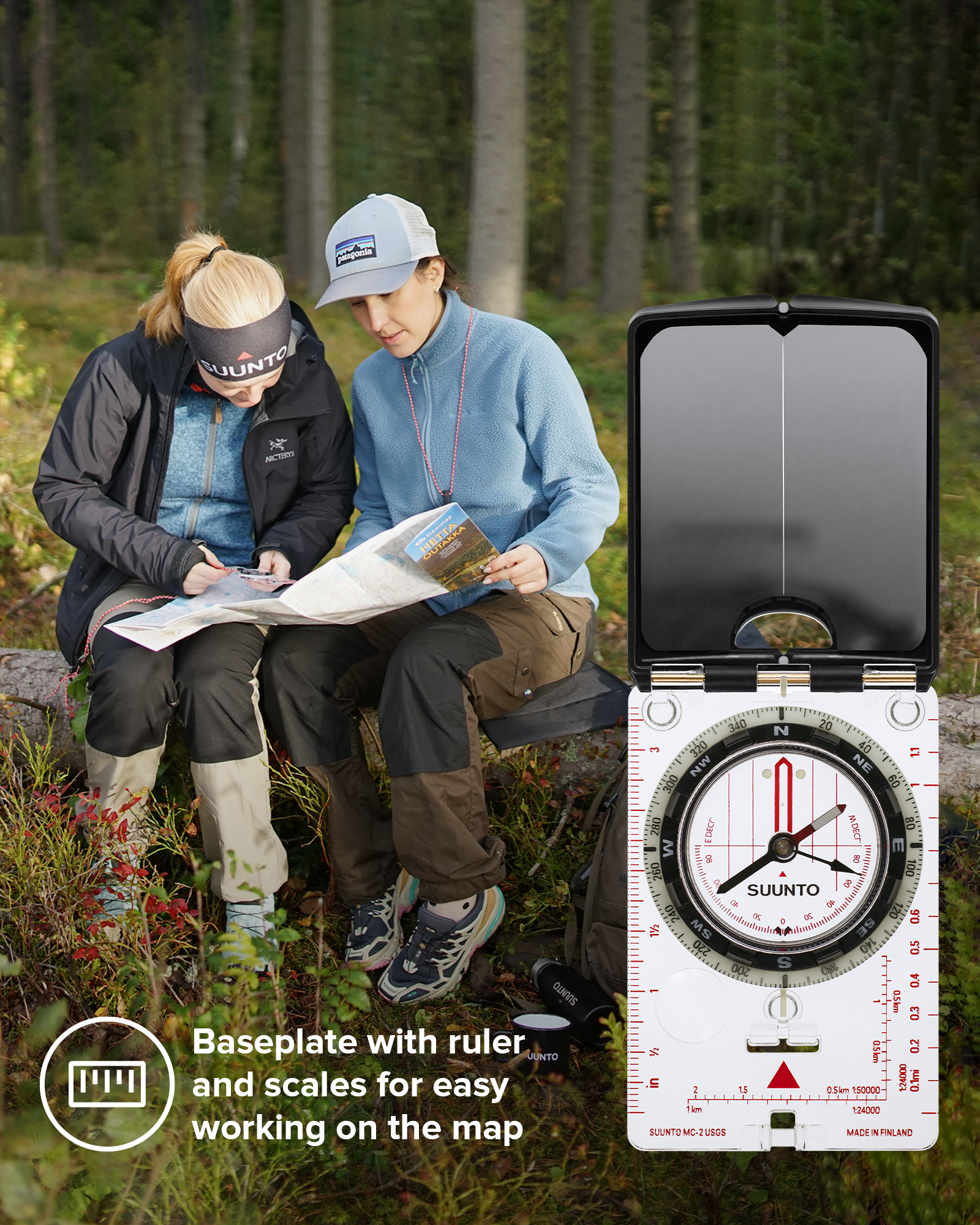

- USGS UTM scales
- Baseplate with magnifying lens

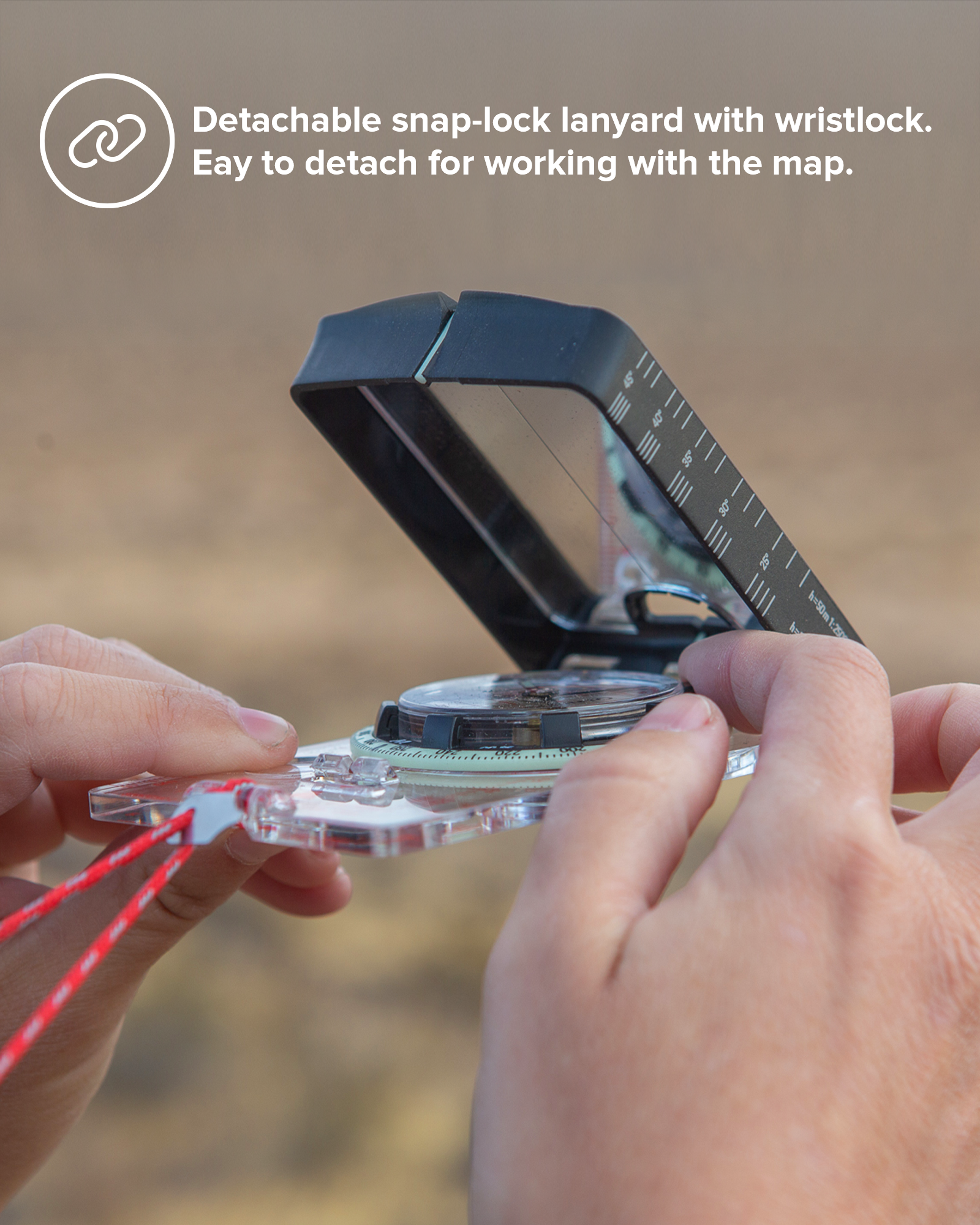

- Detachable snap-lock lanyard with wristlock. Easy to detach for working with the map
- Suunto limited lifetime warranty
- Made in Finland
- NSN: 6605-01-546-9503
Technical specifications
GENERAL
-
Bezel material:Plastic
-
Imperial scalesinch, 1:24 000 mi, 1:24 000 UTM, 1:50 000 UTM
-
Balanced for northern hemisphere✔
-
Declination correctionadjustable
-
Weight74 g / 2.61 oz
-
Water resistanceinsensitive to water pressure
-
Battery typeno battery required
-
Luminous markingsbezel, orienting markings, direction of travel
-
Lanyard quick release✔
-
Attachmentlanyard
COMPASS
-
Direction scaledegrees
-
Needlehigh grade steel
-
Liquid filled and jewel bearing✔
-
Bearing lock with orienting indicator✔
-
Compass accuracy2.5°
-
Compass resolution2°
PHYSICAL SPECIFICATIONS
-
Operating temperature-30° C to +60° C / -22° F to +140° F
-
Storage temperature-30° C to +60° C / -22° F to +140° F
OUTDOOR FUNCTIONS
GPS TRACKING & NAVIGATION
-
Sightingmirror, notch and hole
-
Mirror✔
-
Magnifying lens✔
CLINOMETER
-
Clinometer✔
-
Liquid filled✔
-
Clinometer scales0 ± 90°
-
Inlcination accuracy2°
-
Inclination resolution2°
